How to Install Shutters on Bay Windows
Your shutters have arrived. Bay window installations take a little more time than a single window; you’ll be working section by section, but by following each step in order, you’ll end up with a clean, consistent finish across the whole bay.
Tip: This is one installation where a second pair of hands genuinely helps, particularly when aligning frames across the bay and joining them together.
What you’ll receive:
Your shutters will arrive in a few parts:
Shutter panels - boxed and labeled
Frame pieces - boxed separately
A hardware pack with all required fixings - inside the frame box
Before you start
Make sure you have everything ready before you begin. You’ll need a few basic tools:
Rubber mallet or small hammer
Phillips head screwdriver
Drill
Spirit level
Suitable wall anchors for your wall type
Packing material: Shims or wedges (or cardboard)
Painter’s caulk
Step 1: Assemble all frames

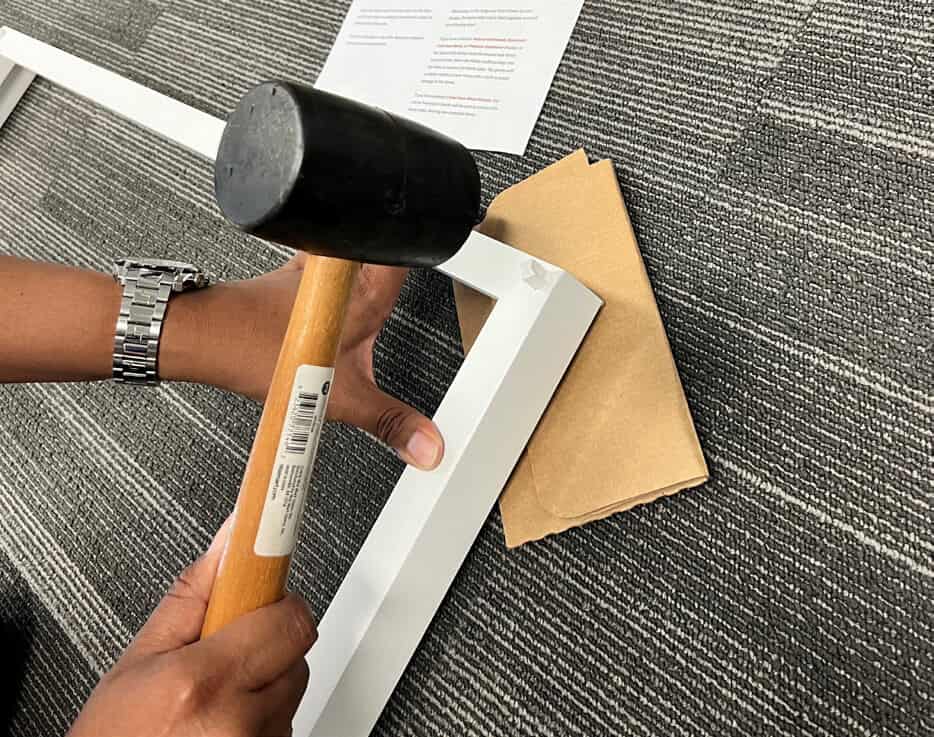

Work on one section at a time. We recommend assembling your frame on a soft surface, such as the cardboard packaging, to protect the finish.
Prepare the frame pieces
Lay the frame pieces face down on a flat surface.
Each piece is marked to show its position. Check these before you start.
Connect the frame
Your frame will connect in one of two ways, depending on the range.
Adding T-posts or T-bars (if included)
If your order includes a T-post or T-bar, fit it into the frame using the pre-drilled holes. T-posts are labelled to guide placement.
T-post labels: T1 = first T-post and T2 = second T-post (working from left to right)

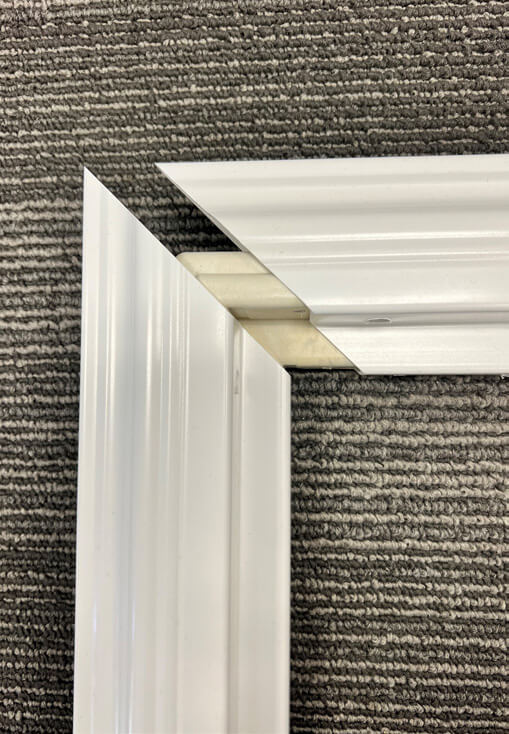

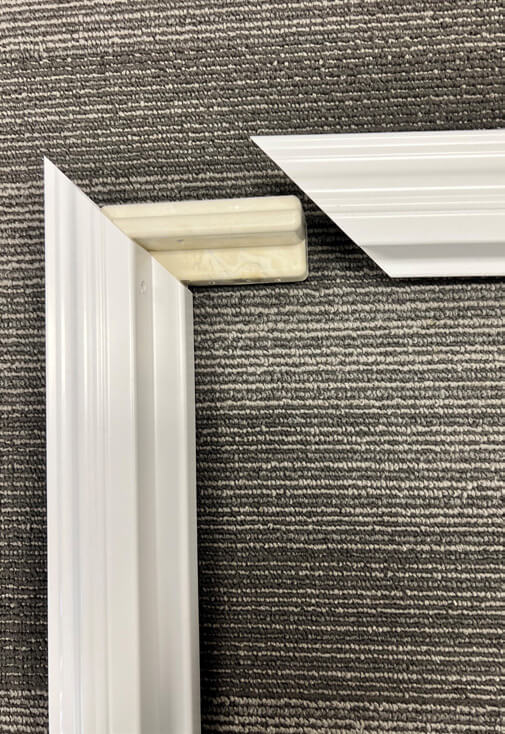

Frame Connections
Most ranges will follow Hoffman Key System
Step 2: Position all frames in the bay
Before fixing anything, place all assembled frames into their correct positions in the bay.
Position each frame in its corresponding window section
Check how the frames meet at the corners
Make sure everything lines up evenly across the full bay
Important: Frames may sit tightly together or with small gaps between them, depending on your window design; both are normal. What matters is that they’re aligned and level.
Step 2: Loosely fix all frames
With all frames in position, fix each one lightly:
Add 1–2 screws per frame, top and bottom or one on each side
Do not fully tighten yet.
Important: Keep all frames loose until every section is aligned. It’s much easier to make adjustments while there’s still a little movement in the frames.
Step 4: Level and adjust the frame
This is the most important step for bay window installations. Take your time.

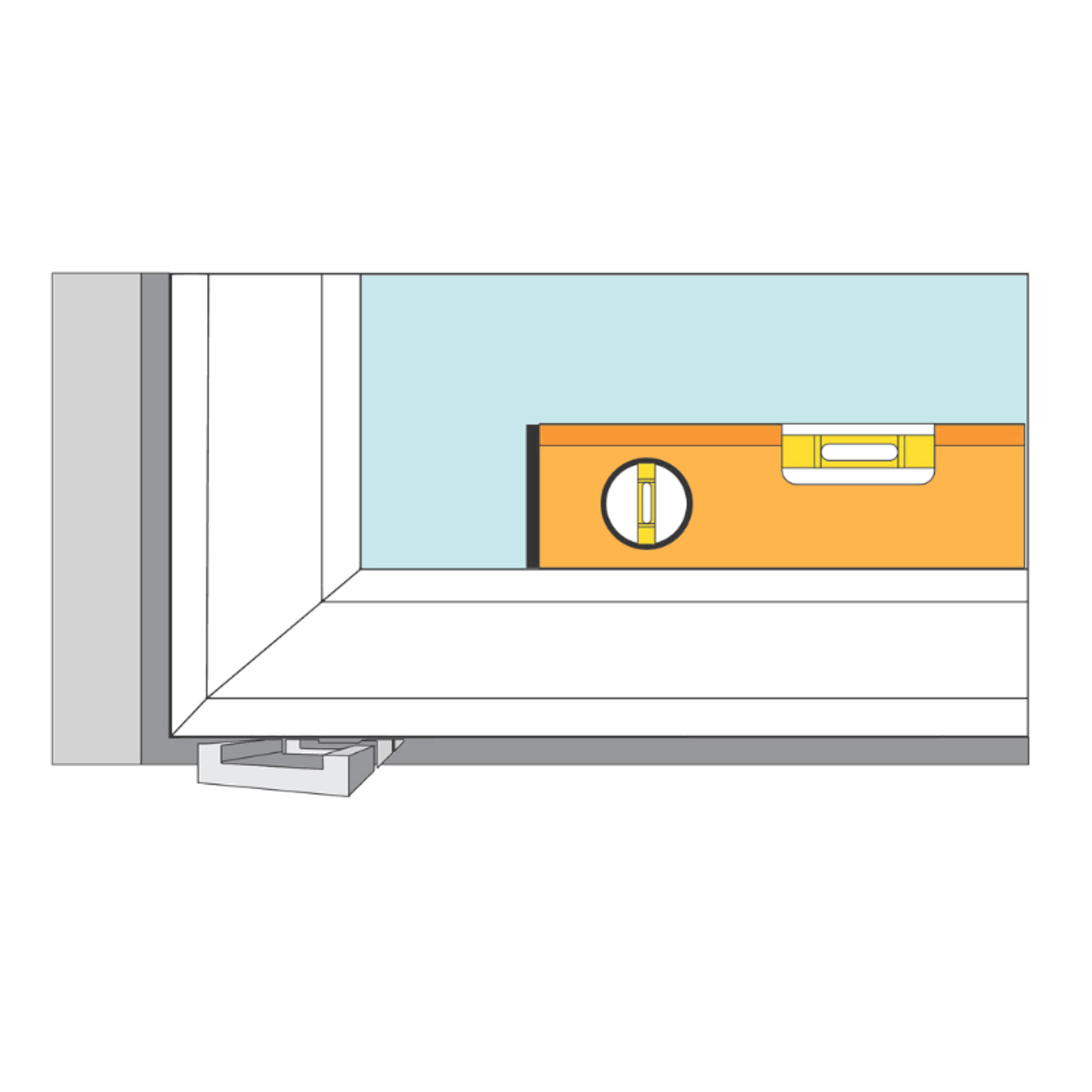

Use a level to check the frame both horizontally and vertically
Add shims or cardboard spacers behind the frame where needed
Tip: Check the full bay from a few feet back before tightening anything. A small misalignment that’s hard to see up close becomes obvious from a distance.
Note: If you’re drilling into brick or concrete, use a masonry drill bit and appropriate wall anchors. Your local hardware store can advise on the right type for your wall.
Step 5: Hang your panels
Once all frames are aligned and joined, hang the panels section by section.

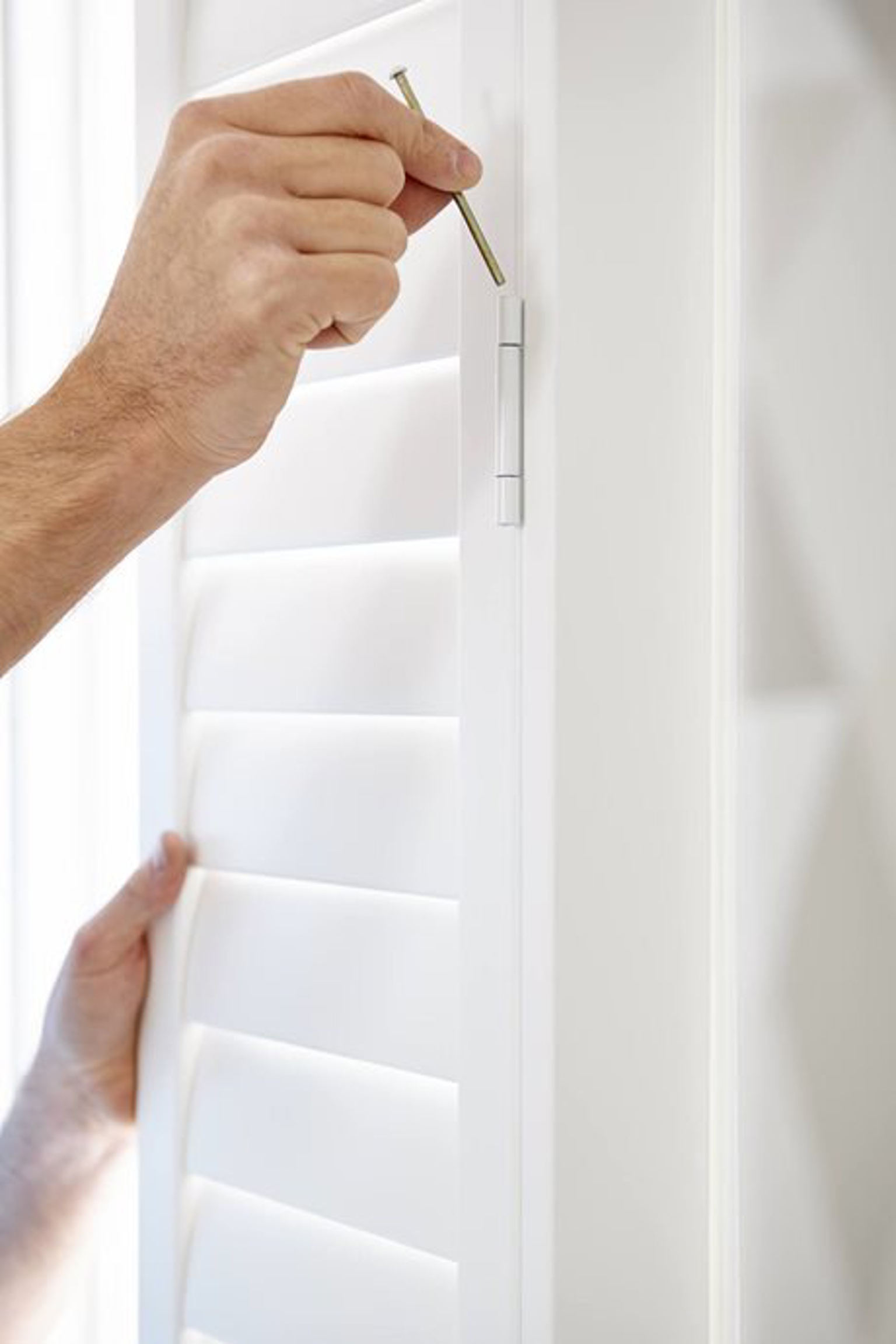

Line up the hinges on the panels to the frame.
Insert the hinge pins to connect them.
Repeat for every panel.
Check panel order before hanging
Panels are labeled 01, 02, 03, and so on. Work from left to right. For Tier on Tier shutters, hang the top section first, then the bottom.
Important: Make sure every panel is in the correct position before inserting the locking screws into the hinge
A few things to know about your panels
Louvers always close upward
Center Tilt Rod: The mouse hole in the top rail is where the tilt rod inserts.
Hidden or Clearview Tilt Rod: A recessed area in the top rail allows the louvers to close neatly and sit flush.
Step 6: Adjust and secure the panels
Open and close each panel to check it moves freely and sits correctly when closed. If any panel needs adjusting:

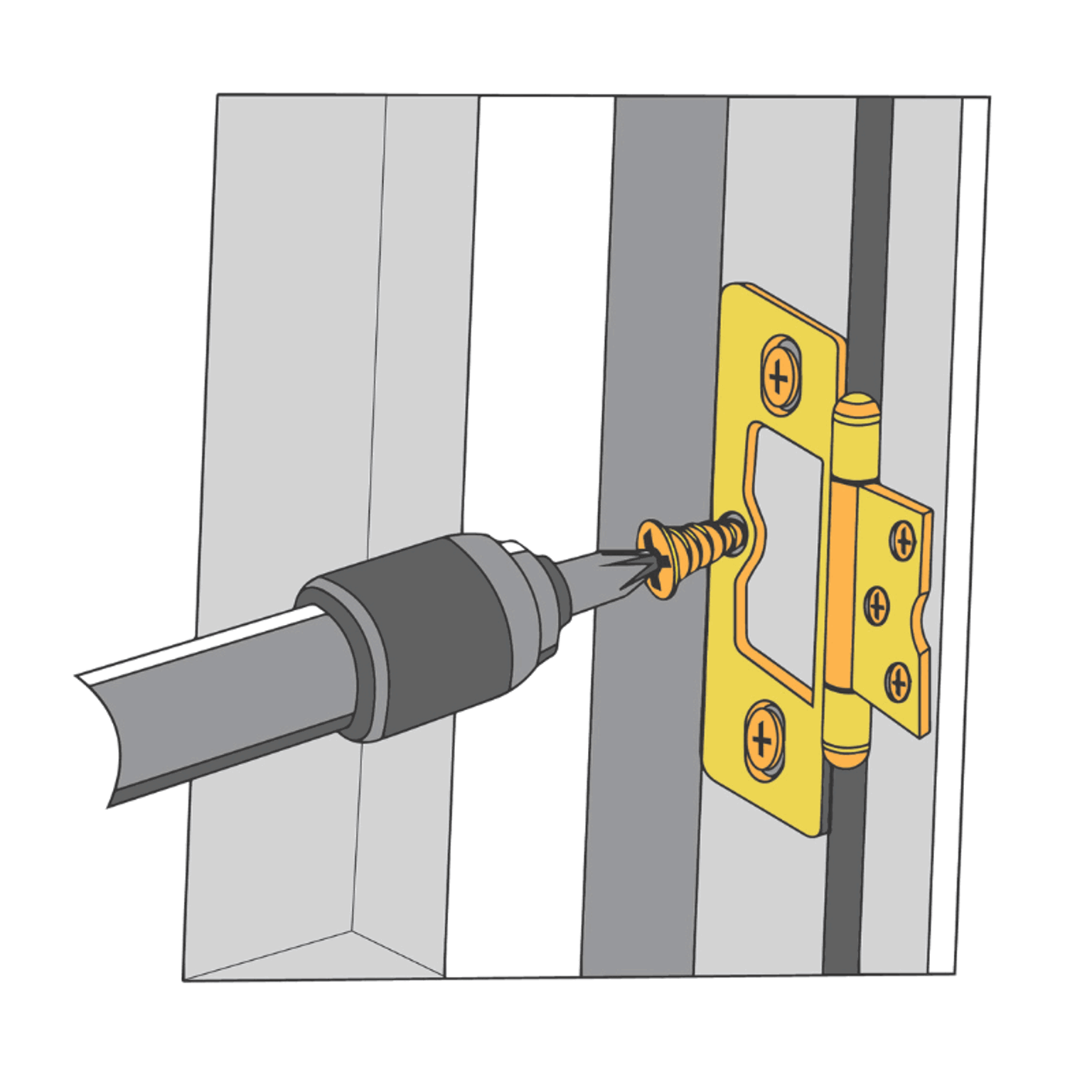

Loosen the top and bottom hinge screws on the frame side of the hinge — do not remove them
Slide the hinge up or down to raise or lower the panel
Re-check alignment, then tighten the top and bottom screws
Important: Don’t insert the middle locking screw on any hinge until you’re completely happy with how all panels hang and close.
Once everything is aligned, insert the final locking screw on each hinge to secure the panels in place.
Step 7: Secure the frame
Once everything is aligned and operating correctly:
Fully tighten all the frame screws.
Check that the frame is secure on all sides.
Step 8: Finishing touches
With everything secured and aligned:
Fit screw caps or adhesive coverings, if included, to conceal fixings

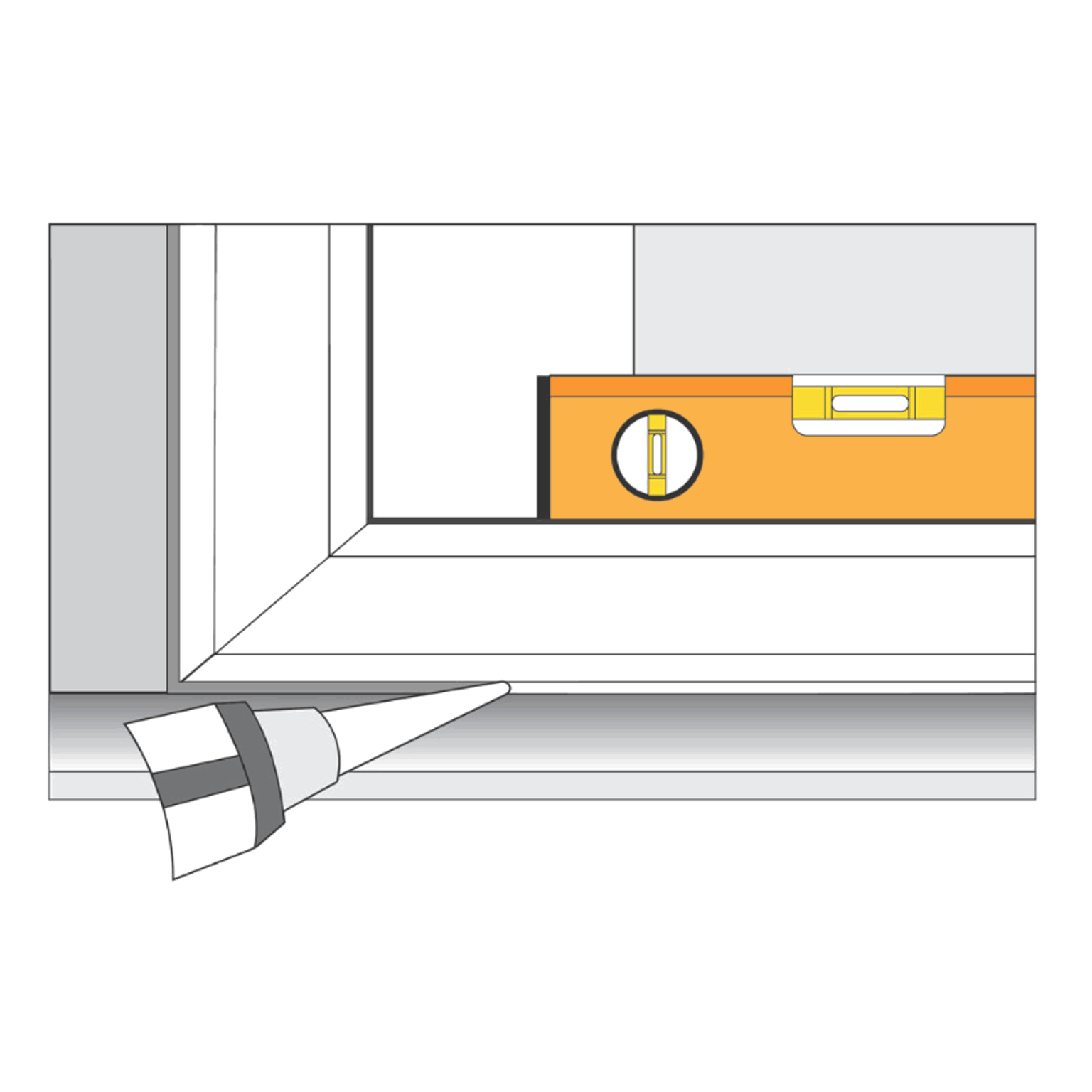

Run a bead of caulk along any gaps between the frame and wall, smooth with a damp finger, and leave to dry
If your louvers feel loose, tighten the tension screws a quarter turn on each side. Watch the louver adjustment video for extra guidance
Wipe down with a soft dry cloth
Note: Some products may not include caps or adhesive coverings for pre-drilled holes.This is normal.
That’s it; your shutters are installed.A clean, professional finish, done by you.
Need help during installation? Send us a photo by email or live chat and we’ll guide you through it. For more help, visit our Shutter Installation FAQs.
